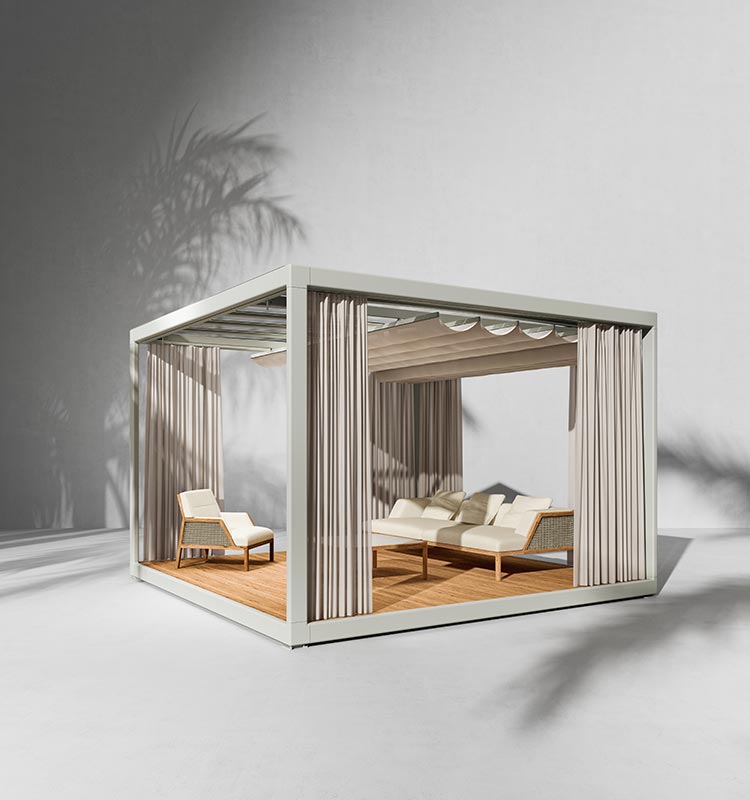

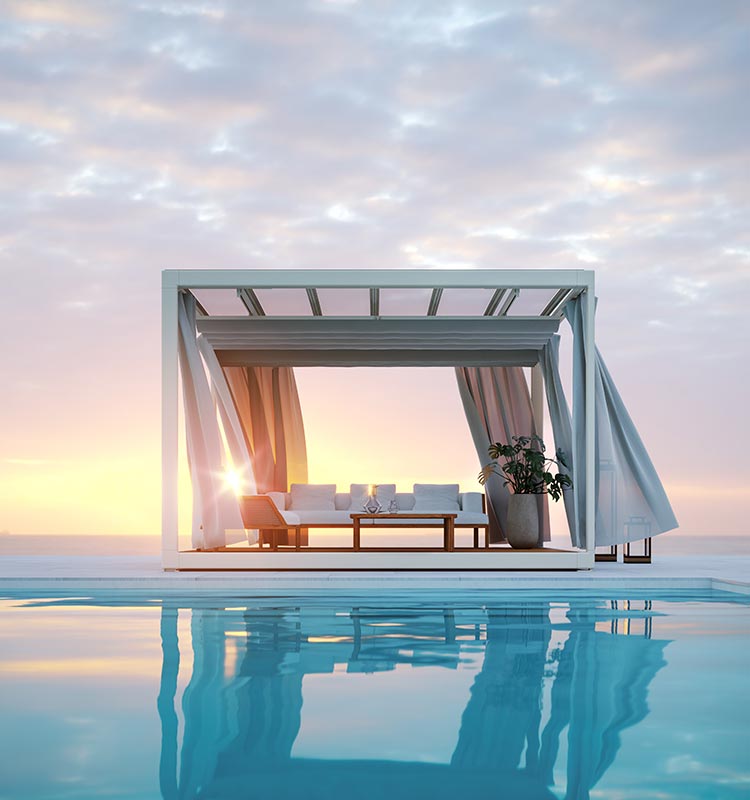

The Eivissa Light & Proof pavilion has a fixed roof in compact polycarbonate that ensures the structure is totally waterproof. The roof, available in either a Light or smoked Fumé version, can also be fitted with a sliding fabric curtain to provide further shelter from the sun.
The entire perimeter can be finished with sliding glass panels or soft curtains in either fabric or handwoven cord.
The Light & Proof can be installed directly on the ground or can be fitted with flooring in teak or ceramic stone.
The Light & Proof roof is made of sheets of polycarbonate 3 mm thick and about 60 cm wide. Each sheet has a load capacity of about 15 kg/m². The polycarbonate comes in either a clear or smoky version. The sheets slide into calendered aluminium guides that force the roof to curve, ensuring water runs off laterally into dedicated gutters and then down through the structure posts to the ground.
Fumè polycarbonate
View polycarbonate / Flow sliding canopy
Strutcture with Base
375x375cm h. 258cm
Strutcture without Base
375x375cm h. 244cm
Strutcture with Base
375x495cm h. 258cm
Strutcture without Base
375x495cm h. 244cm
Strutcture with Base
495x495 cm h. 258cm
Strutcture without Base
495x495 cm h. 244cm
Aluminum painted in 9 colors.
The Eivissa pavilion can have either solid teak wood decking or stoneware, available in three colors.
Flow is a fabric curtain that provides both decoration and shade. Practical and functional, it can be opened or closed to adjust light and shade.
Fitted with perimeter glass panels, Eivissa becomes a completely closed space, insulated from its surroundings. The separate glass panels can be fitted to each side and fold as they open. The 375 cm version requires four glass panels; the 495 cm one five. Each tempered glass panels is 10 mm thick and about 90 cm wide. They have a built-in handle for easy opening and closing, and a foot-activated locking system. The panels can be installed both on the pavilion version with flooring and on the version fixed directly to the ground.
The pavilion can be closed on all sides thanks to acrylic curtains available in four colours.
The pavilion can be closed on each side by interwoven polypropylene curtains available in two colors. The fringes in synthetic rope take up the traditional workings of lace, creating suggestive graphic effects and plays of shadows.
